(Scissor Hinge Back) Subframe available

LL650 - Class D

Recommended for bodies between 9' and 16'  with cab to axel measures of 60" to 120"

Cylinder 5 1/2” bore, 21” stroke, 2 1/2” rod

LL650 Mounting height 10 11/16” (requires 11” long sills)

LL650 Approximate weight 585 lbs

LL650S Mounting height 6 11/16” (requires 7” long sills)

LL650S Approximate weight 720 lbs

Gear pumps are set at 3250 PSI and 6-10 GPM

Electric pumps are set at 3200 PSI and .75 to 3 GPM

Twin motor pumps are set at 3200 PSI and 1.5 to 6 GPM

(electric pumps decrease capacity by approximately 10%)


Note: (Use hoist calculator to estimate capacity)


>>HOIST CALCULATOR CLICK HERE<<


Scott Hoists LL-650 | Truck Lift Hoist | Scissor Lift | Level Lift

* Patented Integral "dual pin interlock" safety feature available on select models.

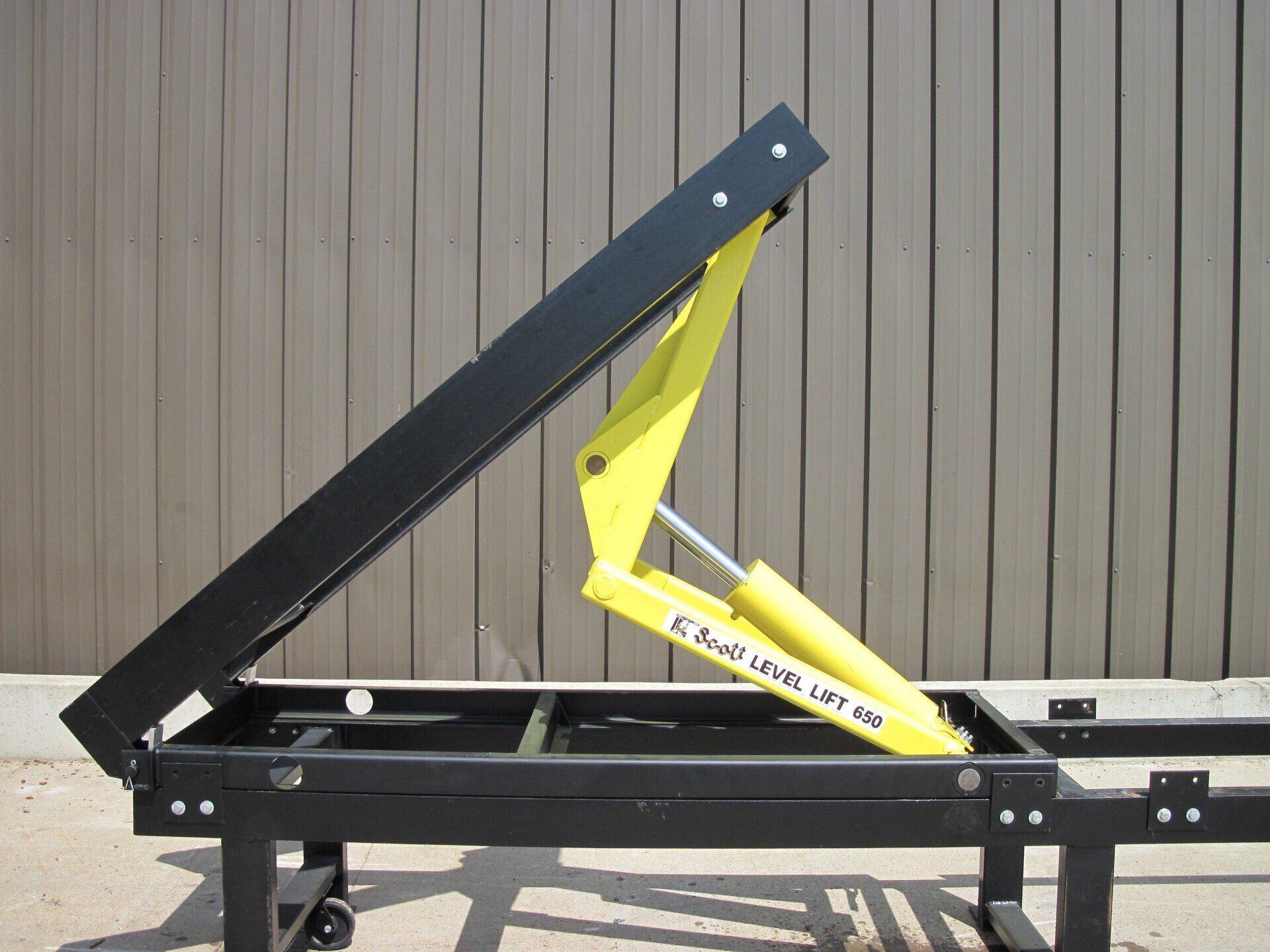

Scott Level Lift LL-650
Scott Level Lift LL-650

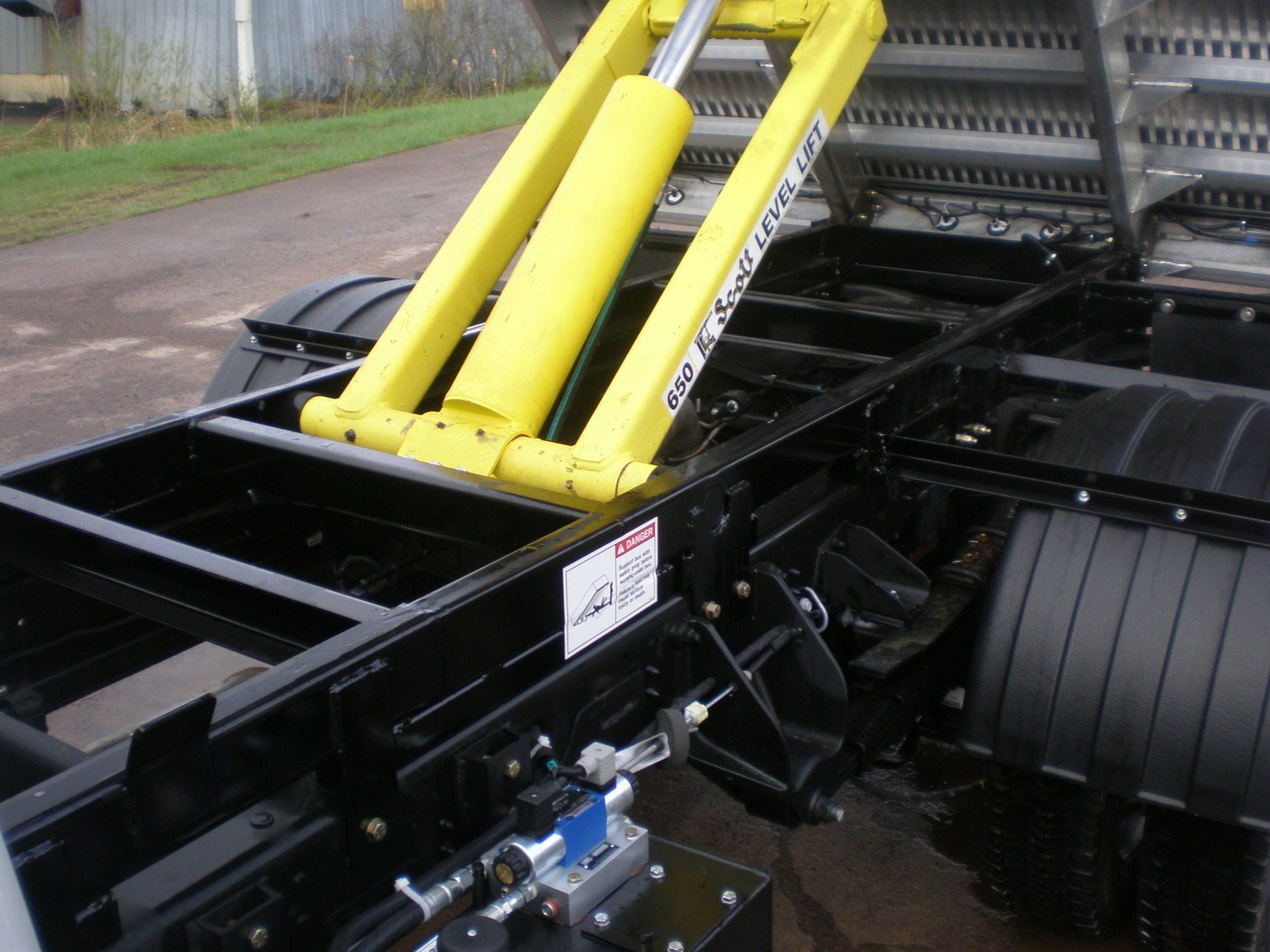

Scott Level Lift LL-650

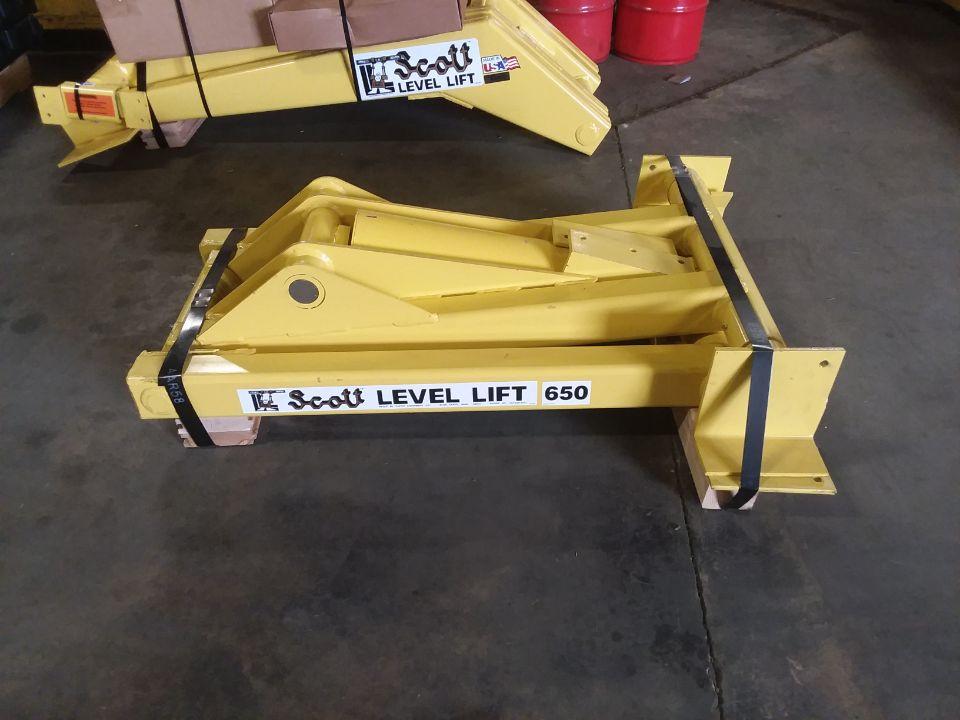

Scott Level Lift LL-650

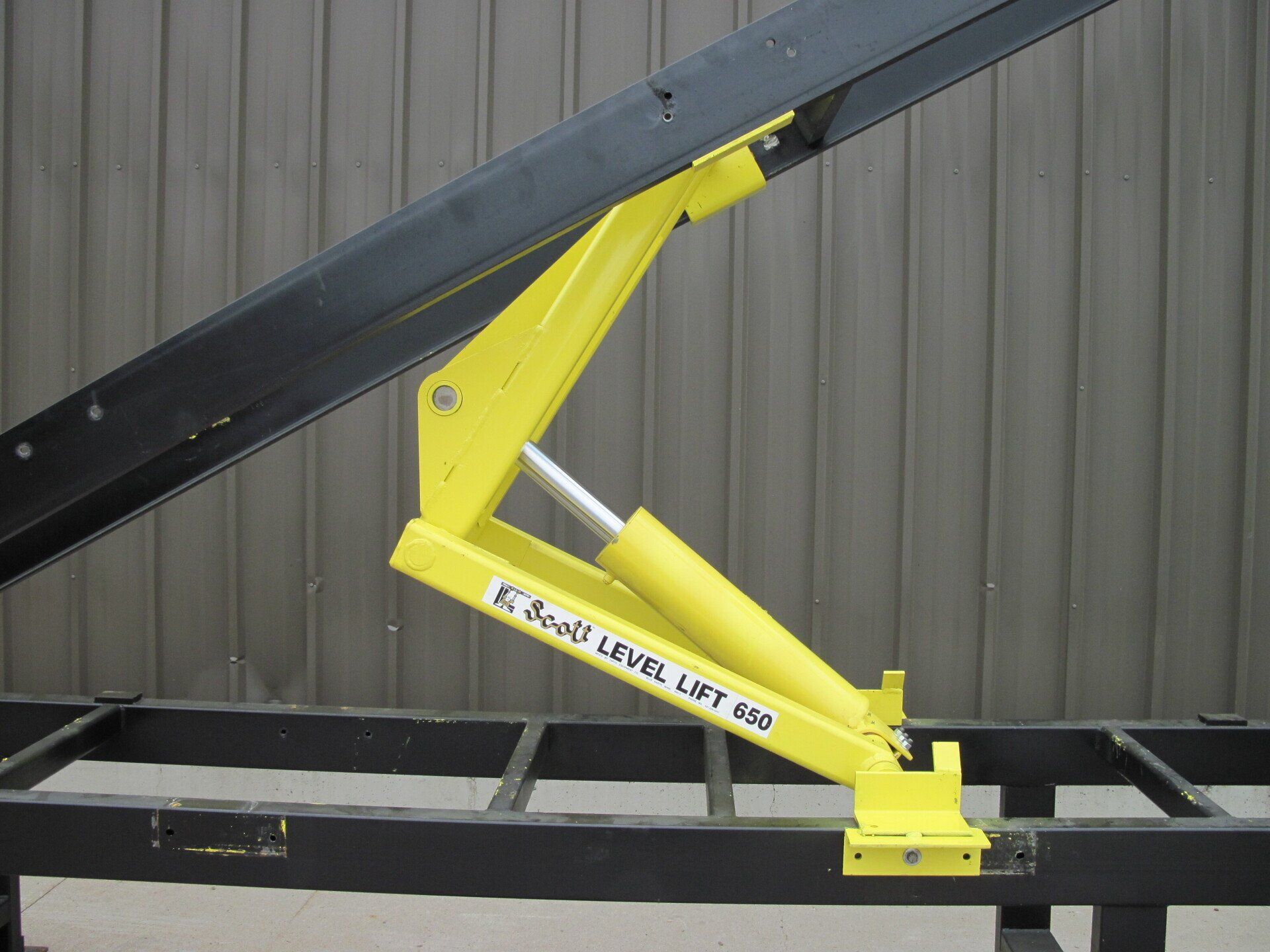

Scott Level Lift LL-650

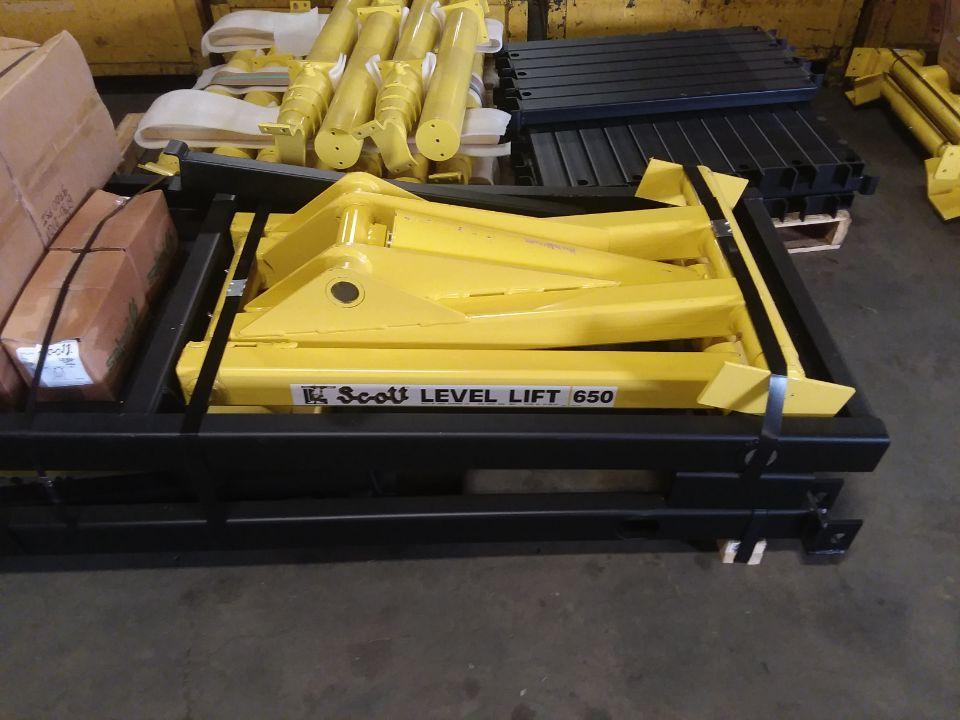

Scott Level Lift LL-650

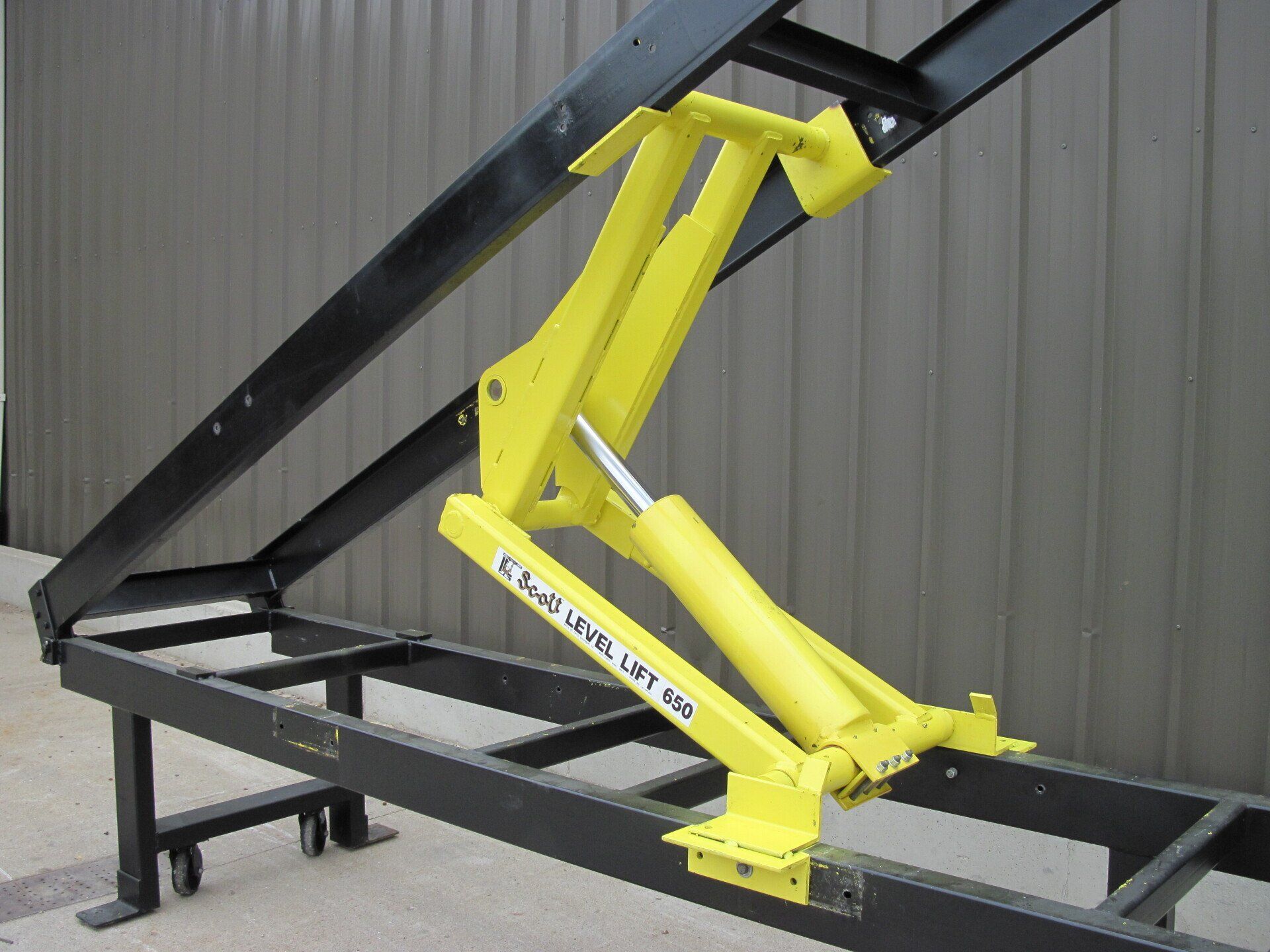

Scott Level Lift LL-650

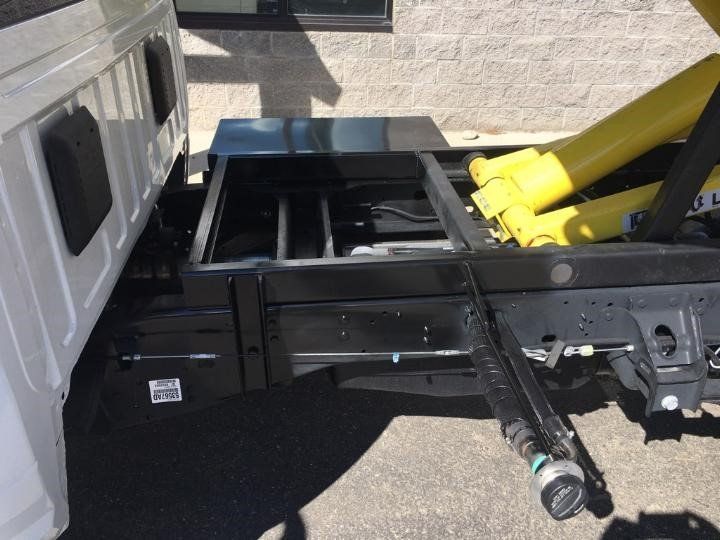

Scott Level Lift LL-650

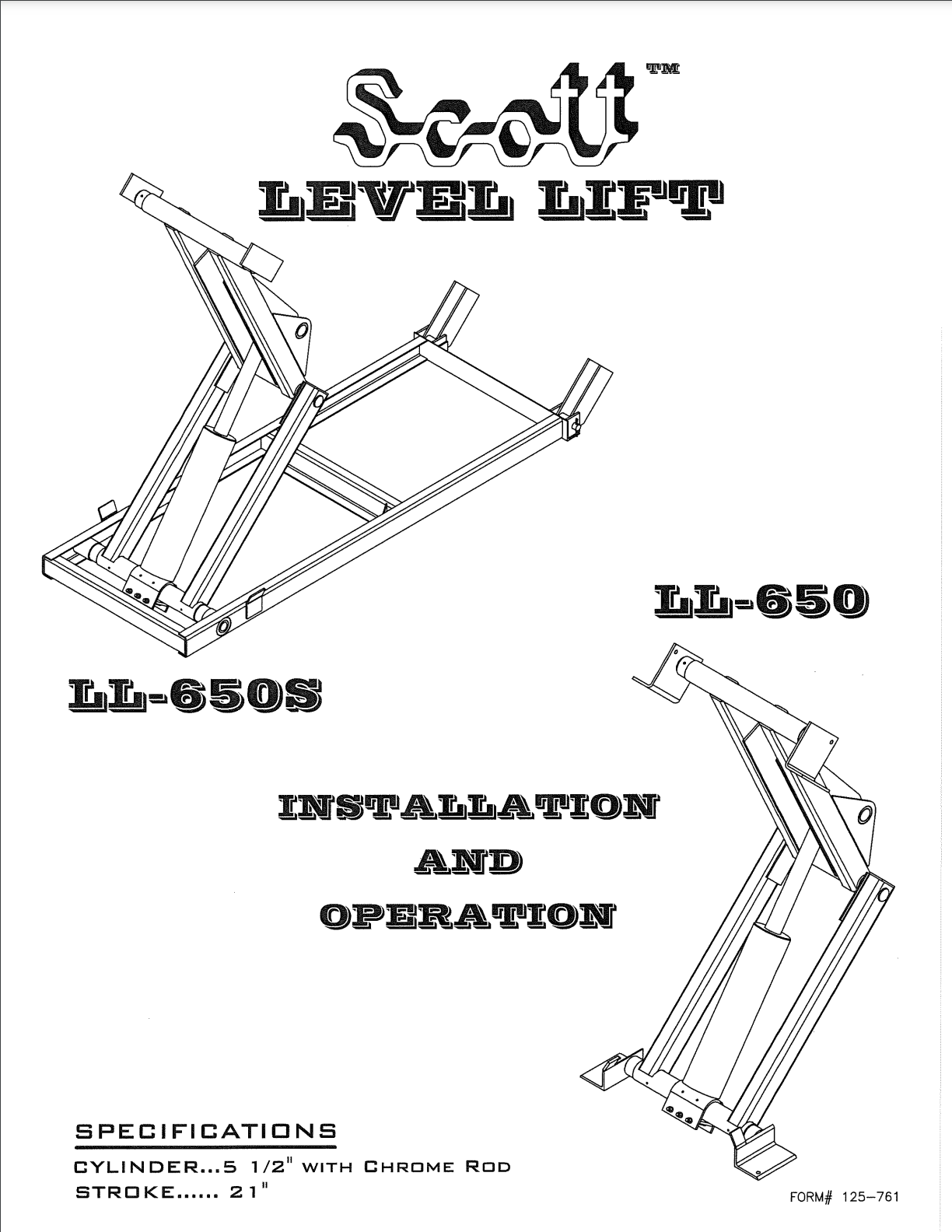

Scott Level Lift LL-650 Hoist Manual Front Page
