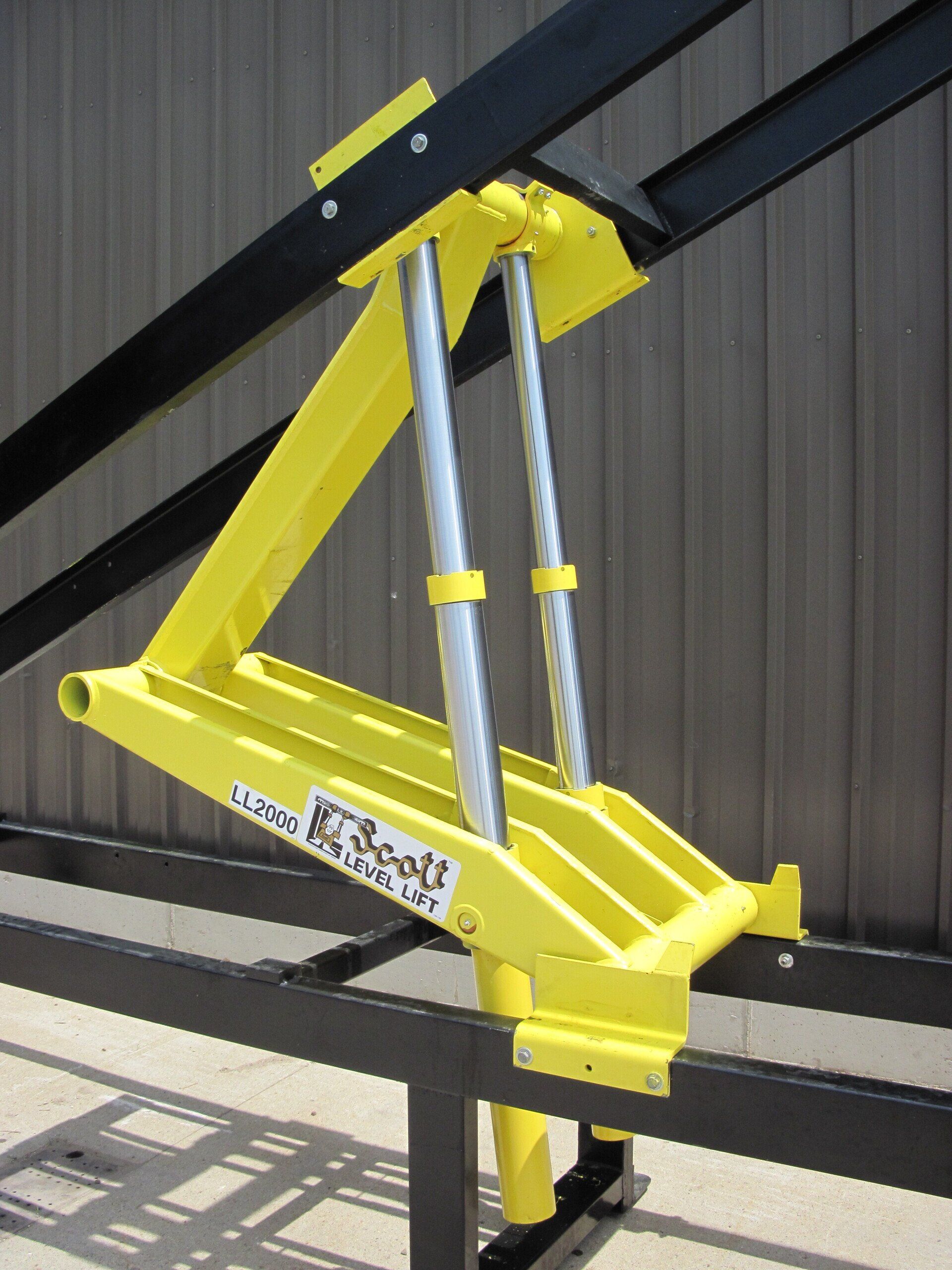

Twin Telescopic Hinge Back

Large Truck Applications  - Class J

Recommended for bodies between 18' and 24'

Twin telescopic cylinders with three moving stages 80 1/4” stroke

Chrome cylinder tubes with state-of-the-art z-seal construction for maximum oil control.

Wide internal wear rings for stability, maximum wear, and durability.

Steel stop rings for safety and durability

LL2000 Mounting height 12 9/16” (Requires 13" longsills)

LL2000 Approximate weight 800 lbs

Leg style upper and lower mounts with built in body guides

Single or double valve reservoirs available

Valve can be operated with cable, or air.

Large 50- or 60-quart reservoir for maximum cooling

Gear pumps are set at 3600 PSI and 8-12 GPM

Note: (Use hoist calculator to estimate capacity) Single Acting
