STANDARD LENGTHS

• 12’–26’

WIDTHS AVAILABLE

• 97 1/2” ID surface dimension–102” OD width (OD measures to the outside of pockets & banding rail)

CROSSMEMBERS

• 4” structural steel channel crossmembers 12” standard cross-member spacing (gusseted fore & aft every cross-member)

LONGSILLS

• (12’6”) 6” steel structural channel longsills
• (14’6”, 16’6” & 18’6”) 7” steel channel longsills
• (20’6”, 22’6” & 24’6”) 8” steel channel longsills

FLOORING OPTIONS

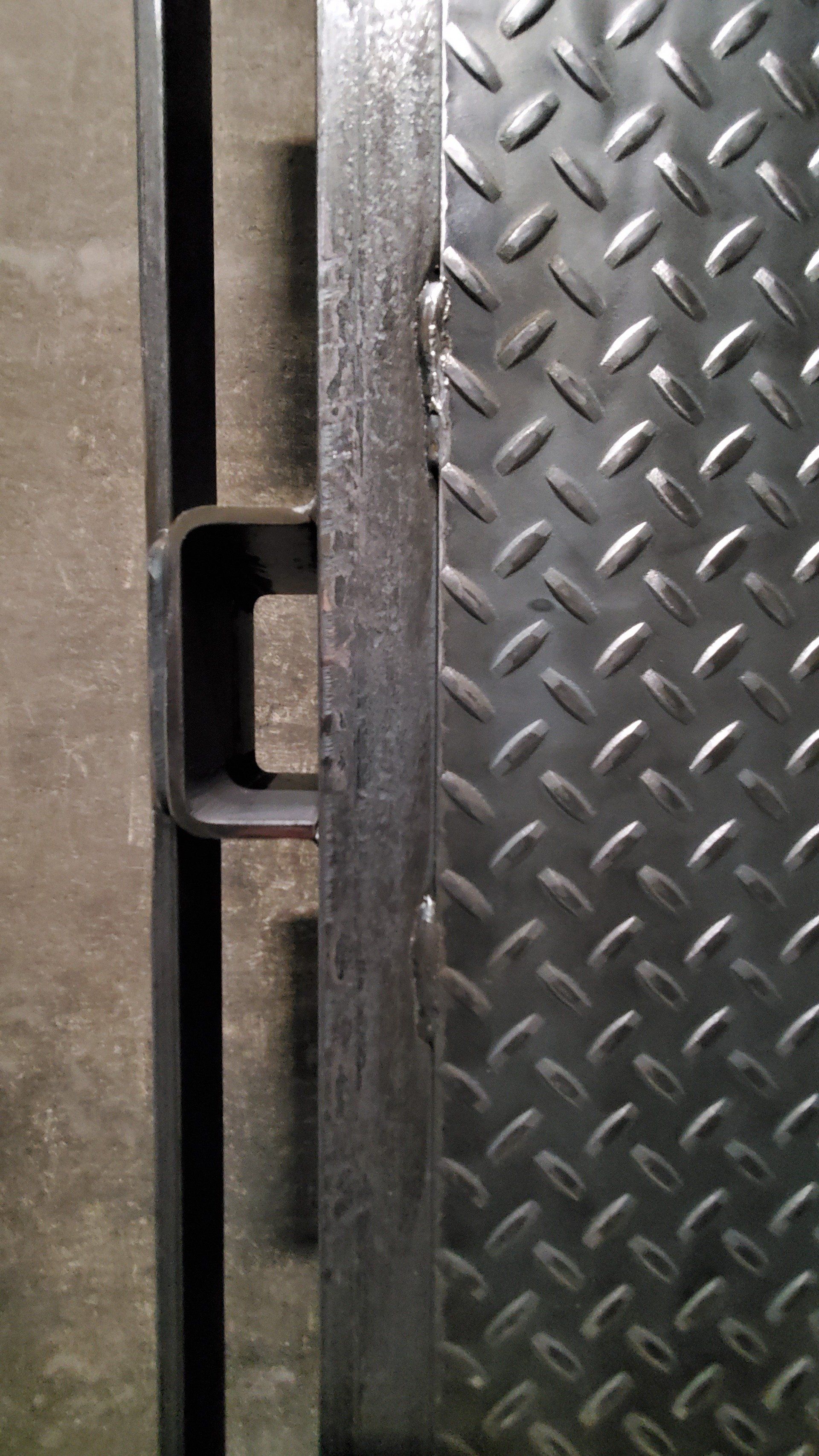

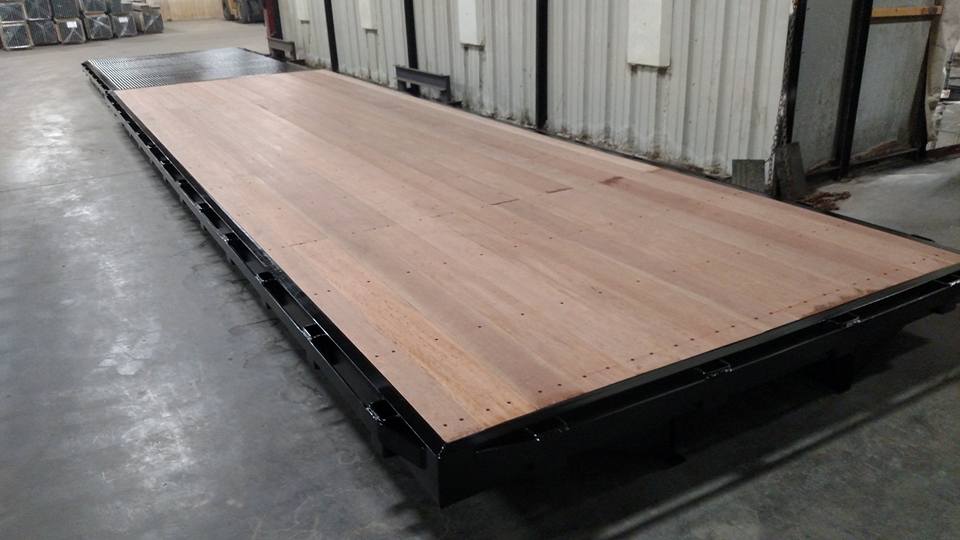

• T&G Douglas fir wood, 10-gauge smooth steel, 10-gauge smooth steel over wood, 7-gauge smooth steel, 7-gauge smooth steel over wood, 1/8” tread-plate steel, 1/8” treadplate steel over wood, 3/16” tread-plate or 3/16” tread-plate over wood and Apitong.

OPTIONS

• Steel, Aluminum or Poly Rack Kits available (42” height), tailgate section removable, (rear swing racks available in 42” rack set)
